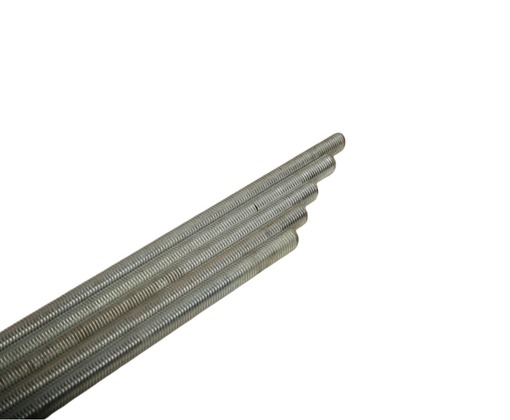

Thread Rods

FEATURES AND BENEFITS
Material: Mild Steel, Carbon Steel, Alloy Steel & Stainless Steel.
Standards: ASTM/ASME/ DIN/ BS EN ISO/JIS
Threads: UNC, 8UN, UNF, Metric Coarse and Metric Fine
Size Range:
  • M6 to M100 in Metric series.
  • 1/4" to 4" in Imperial.
  • Bigger sizes can be manufactured as per order.
Typical Grades & Standards:
  • ASTM A193 Grade B7, B7M, B8, B8M & B16
  • ASTM A320 Grade L7 & L7M
  • BS 3692 / BS 4190 Grade 4.6, 4.8, 5.6, 5.8, 8.8
  • Stainless Steel 304, 304L, 316, 316L, A2-70/80, A4-70/80
Offering:
  • Dimensions - Size.
  • Information
  • Standards and Grade
  • Finish (Black, GI, Yellow, HDG, Cadmium, Nickel, PTFE etc)
Product Code Threaded Code Rod Size (R) Length (L) mm Pitch (mm) Minimun Proof Load (N) Bundle Quantity
HGEPTR3 06 M6 3000 1 4.5 100
HGEPTR3 08 M8 3000 1.25 8.2 60
HGEPTR3 10 M10 3000 1.5 13.1 35
HGEPTR3 12 M12 3000 1.75 19 25
HGEPTR3 14 M14 3000 2 25.9 20
HGEPTR3 16 M16 3000 2 35.3 12
HGEPTR3 18 M18 3000 2.5 43.2 10
HGEPTR3 20 M20 3000 2.5 55.1 8
HGEPTR3 22 M22 3000 2.5 68.2 8
HGEPTR3 24 M24 3000 3 79.4 6
HGEPTR3 27 M27 3000 3 103 6
HGEPTR3 30 M30 3000 3.5 126 5
HGEPTR3 33 M33 3000 3.5 126 8
HGEPTR3 36 M36 3000 4 184 4
HGEPTR3 39 M39 3000 4 220 4
HGEPTR3 42 M42 3000 4.5 252 2
HGEPTR3 45 M45 3000 4.5 331 2
HGEPTR3 48 M48 3000 5 396 2
HGEPTR3 52 M52 3000 5 602 1
