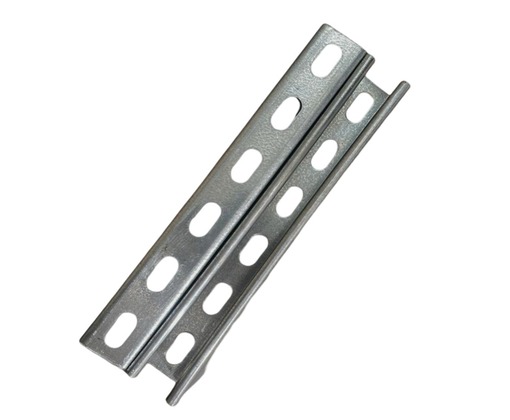

Strut Channel

FEATURES AND BENEFITS
Description:
  • Universal rail system.
  • With continuous and perforation (on request without perforation).
  • Distance between rail end and first hole is always equal.
  • A continuous graduated centimetre scale on one side.
  • Yield strength 240 N/mm².
  • Tested for fire safety.
Material: Steel, other materials on request.
Special:
  • Electro galvanized as per ASTM B 633.
  • Galvanized as per ASTM A 123 / A 123M.
Product Code W mm Size H mm T mm Length L mtr S mm Bundle Quantity Pcs
HGEPSC21-1.5 41 21 1.5 2,3 or 6 22 12
HGEPSC41-1.5 41 21 1.5 2,3 or 6 22 8
HGEPSC21-2 41 21 2 2,3 or 6 22 12
HGEPSC41-2 41 41 2 2,3 or 6 22 8
HGEPSC21-2.5 41 21 2.5 2,3 or 6 22 12
HGEPSC41-2.5 41 41 2.5 2,3 or 6 22 8
Product Code Unit HGEPSC21-1.5 HGEPSC41-1.5 HGEPSC21-2 HGEPSC41-2 HGEPSC21-2.5 HGEPSC41-2.5
Area of Shear cm² 0.42 1.02 0.55 1.34 0.67 1.67
Moment of Inertia (xx) cm⁴ 0.7 3.87 0.88 4.59 1.03 5.87
Moment of Inertia (yy) cm⁴ 3.34 5.68 4.25 6.99 5.07 8.76
Min. Section Modulus cm³ 0.6 1.76 0.75 2.18 0.89 2.72
Warping Constant cm⁶ 17.49 114.17 21.34 138.49 24.34 171.52
Torsional Constant cm⁴ 0.01 0.02 0.02 0.03 0.06 0.07
Allowable Bending Stress kN/cm² 21.82 21.82 21.82 21.82 21.82 21.82
Allowable Shear Stress kN/cm² 12.6 12.6 12.6 12.6 12.6 12.6
Modulus of Elasticity kN/cm² 21 21 21 21 21 21
