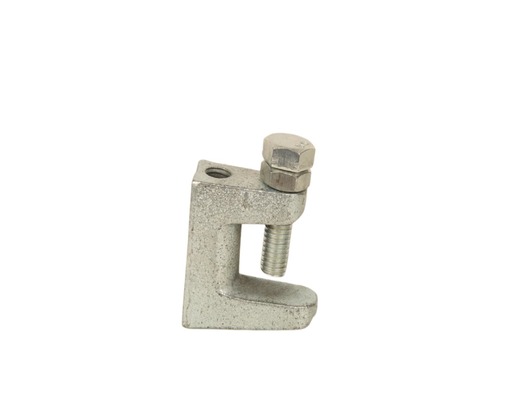

Beam Clamp

FEATURES AND BENEFITS
Coating Specification: Minimum 8+ micron Electro-galvanized zinc plating.
Dimensional Tolerance:
  • All Dimensions are as per Table LBM-01 unless otherwise specified.
  • For dimensions not specified: ± 3%.
Material Specification: Malleable Iron, ASTM A47 Grade 32510 SG Iron, Ductile Iron & all Equivalent Grades.
Table No LBM-01. Universal Beam Clamp Specification
Product Code Size mm Rod (R) b ±5.0 mm m ±5.0 mm h1 ± mm w 5.0 ±3.0 mm Height (H) +5.0 mm Remarks Maximum Load (N)
FG-LBM-12 UPTO 8" M12 57 30 37 14 53 To be used only on Top Position 18014
